Innovative Cells for High-Capacity Urban Drainage

Moonbay Drainage Cells are modular plastic units with a honeycomb-like structure, designed to support high surface loads. They can be assembled into underground systems for drainage and stormwater management, meeting multifunctional needs in shallow ground applications—including load support, paving stabilization, water retention, storage, drainage, and infiltration.

High Load-Bearing Capacity

The cells are engineered to withstand vertical loads of up to 130 tons/m² (typically tested at 80 tons/m²) and horizontal loads up to 40 tons/m², making them ideal for high-traffic areas such as parking lots, roads, and industrial sites.

Optimized Void Ratio

Optimized 95% Void Ratio for Superior Drainage.Designed with a stable mechanical honeycomb structure, the cells feature a 95% void ratio that promotes exceptional water flow and infiltration. This minimizes surface runoff and maximizes drainage efficiency, making them ideal for urban rainwater management.

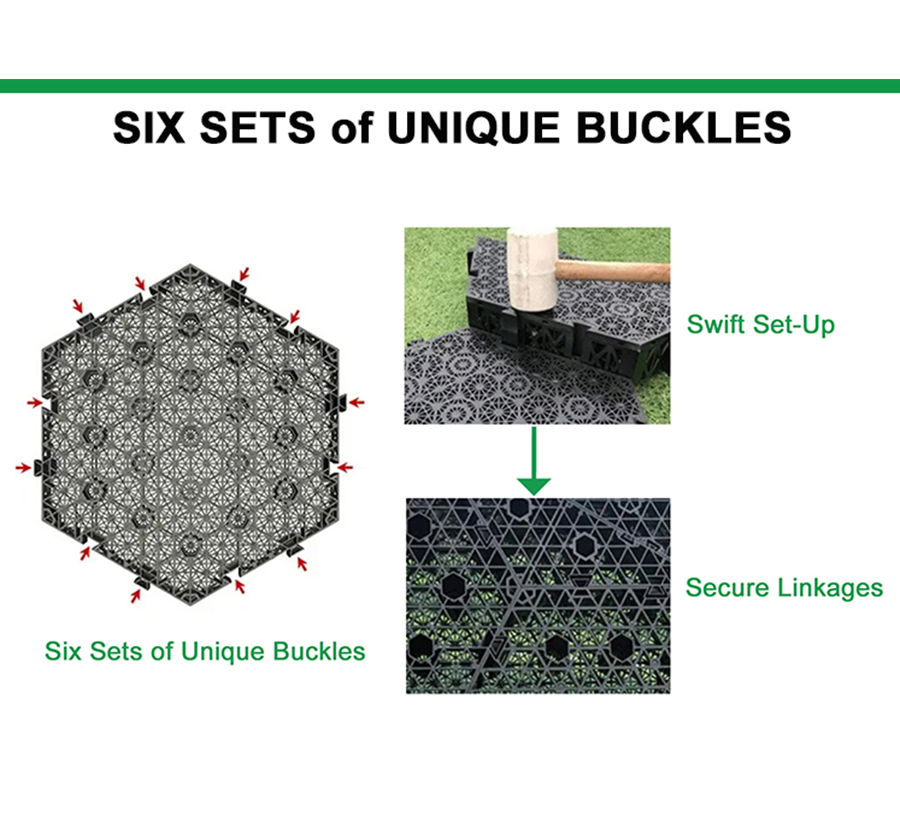

Six Sets of Unique Buckles

Each stormwater module is equipped with six unique buckles, facilitating a secure connection between units. This design not only guarantees that the modules remain firmly interlocked but also simplifies and accelerates the installation process.

Sustainability

Constructed from recyclable polypropylene, these cells align with circular economy principles, promoting long-term sustainability and reducing environmental impact.
