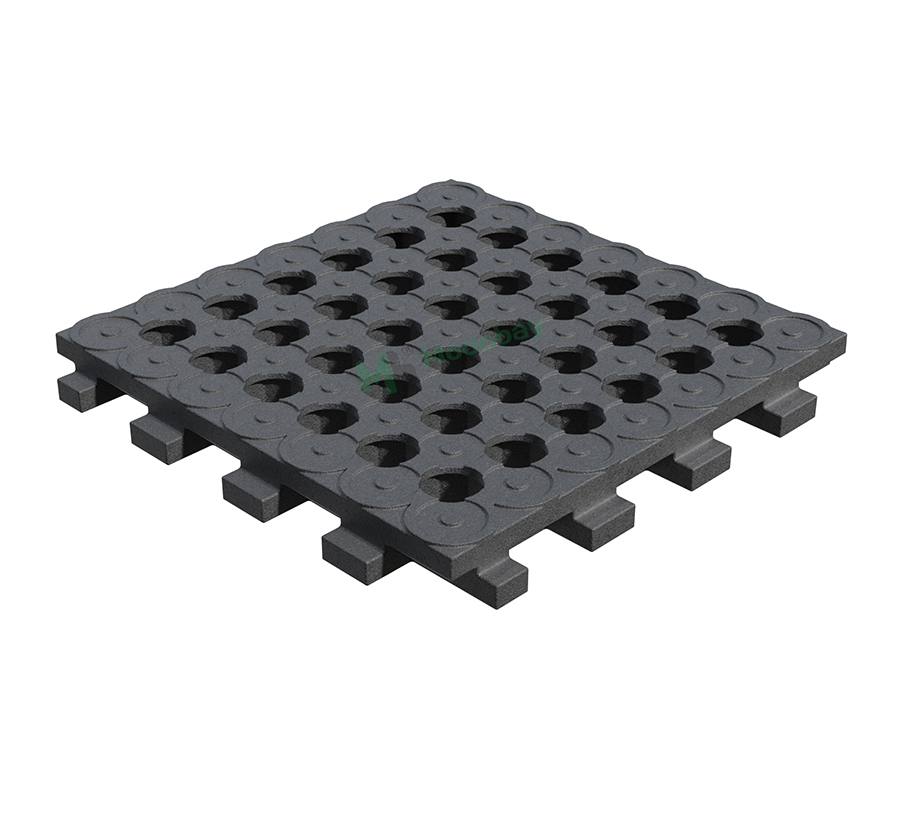

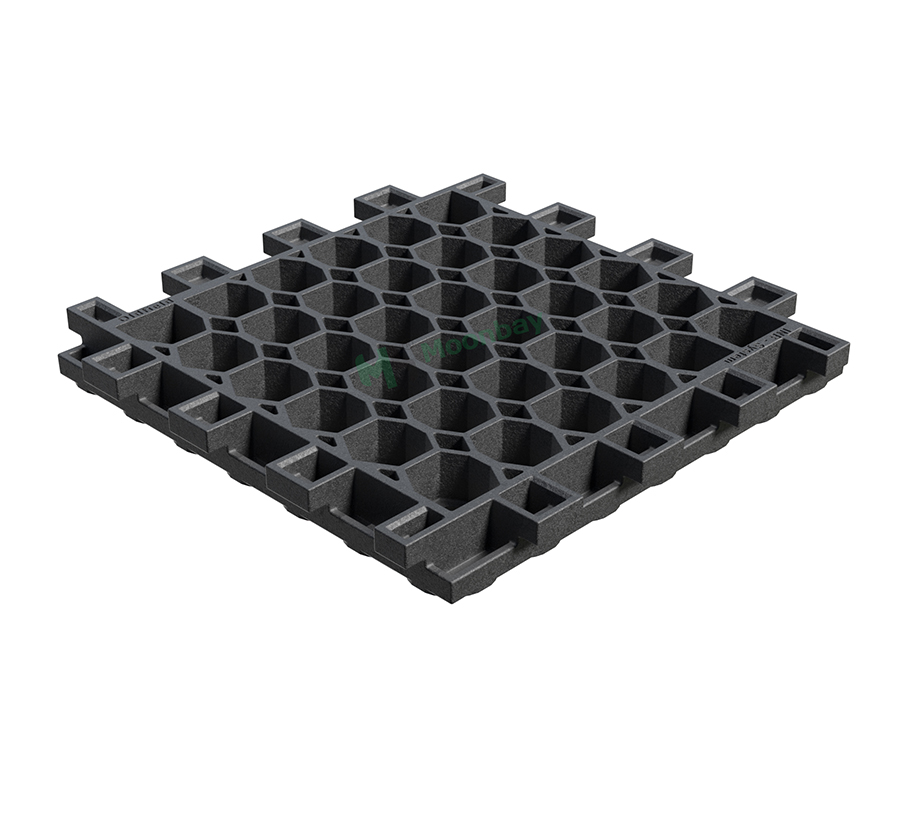

The Horse Paddock Mud Control Grid is a ground reinforcement system designed to create stable, mud-free surfaces with minimal ground preparation. It is used to reinforce soft or muddy ground in horse paddocks, livestock areas, gateways, feeding zones and other high-traffic areas. The interlocking and perforated grid system helps improve drainage, manage temporary water accumulation and provide a stable surface for animals, pedestrians and vehicles.
● PRODUCT PARAMETERS
| Parameter | Specification |
| Main Application | Stabilizing soft or muddy ground |
| Material | 100% recycled plastic |
| Grid Size | 500 × 500 × 53 mm |
| Grid Weight | 5.2 kg/pc |
| Coverage | 0.25 m²/pc |
| Packing | 164 pcs/pallet, covering 41 m² |
| Standard Color | Black |
| Connection Type | Interlocking overlapping tabs |
| Suitable Areas | Horse paddocks, livestock areas, gateways and high-traffic zones |

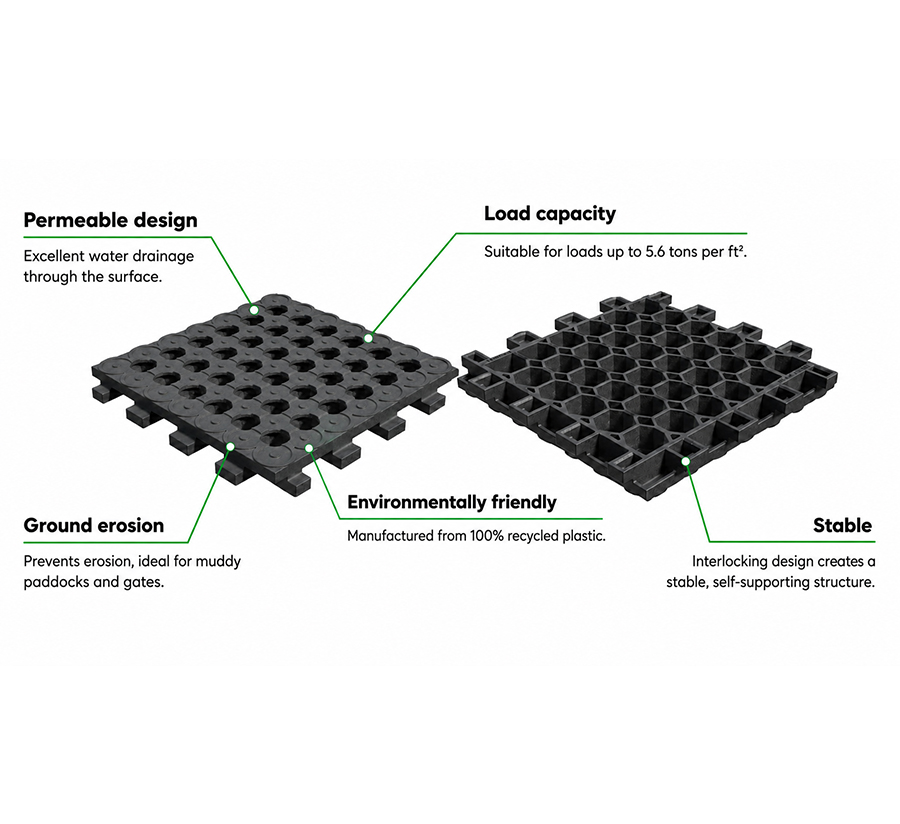

● KEY ADVANTAGES

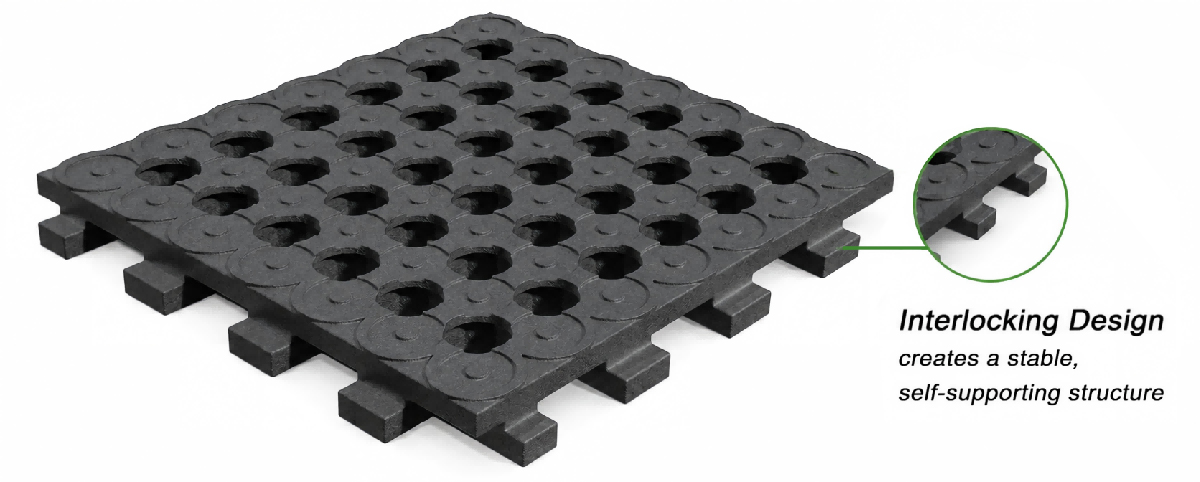

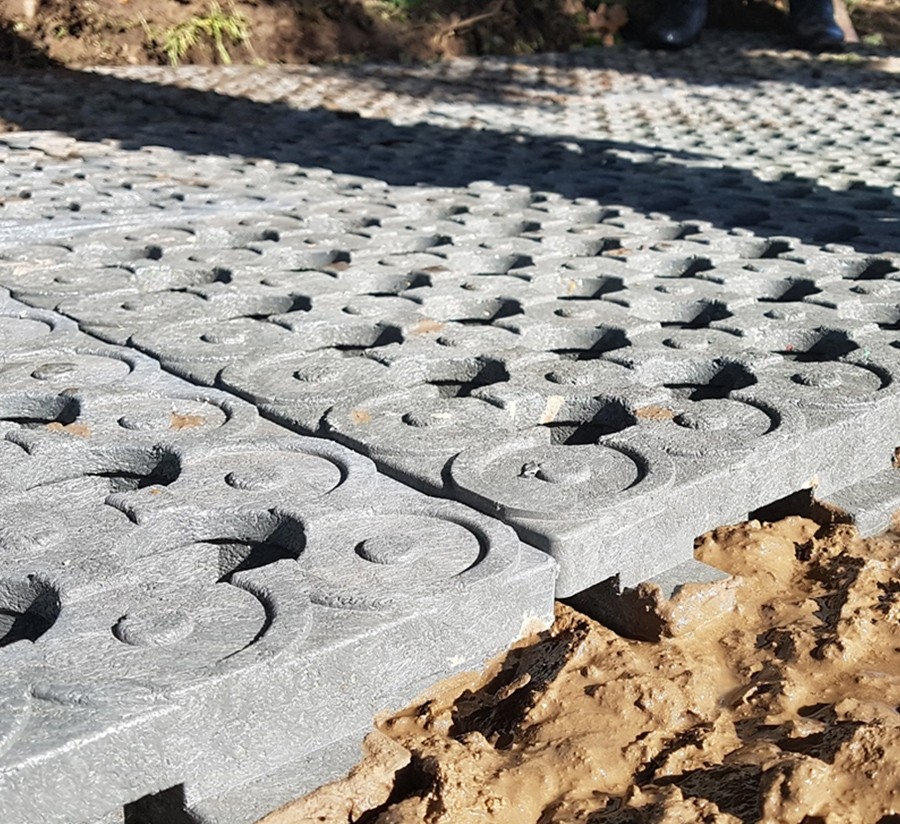

 | Interlocking Design The interlocking structure allows adjacent grids to connect quickly, creating a continuous and stable surface for different site layouts. |

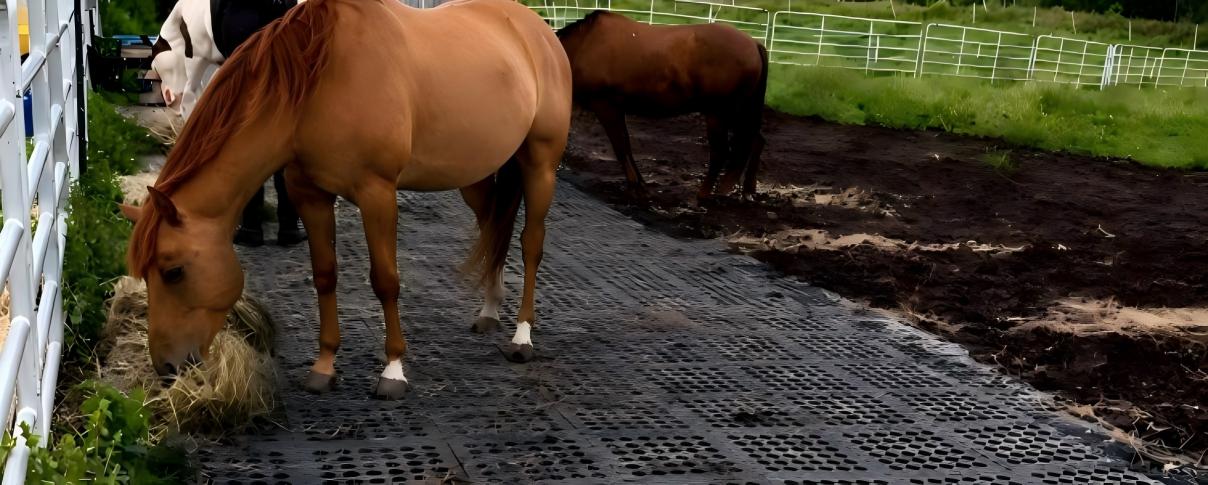

 | Optimized Aperture Size The carefully designed openings help reduce the risk of hoof entrapment and provide stable footing when properly filled and covered. |

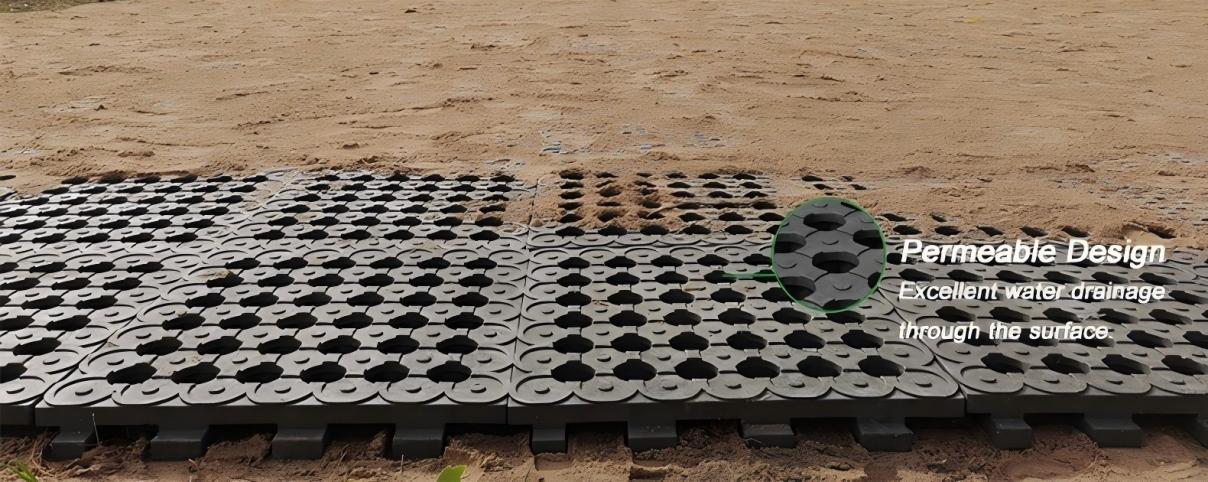

 | Efficient Drainage The perforated structure allows water to pass through efficiently, helping reduce standing water and muddy surface conditions. |
● SUITABLE APPLICATIONS

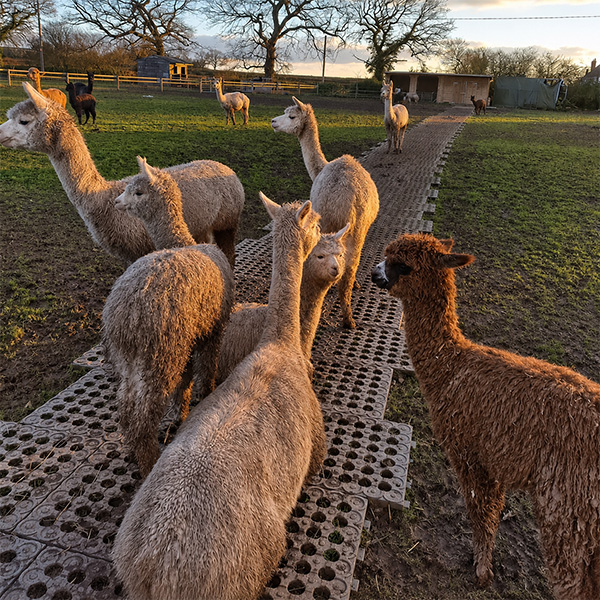

Livestock Walkways Provides a stable, permeable surface for alpacas, sheep and other livestock in muddy walkways and frequently used access areas. |

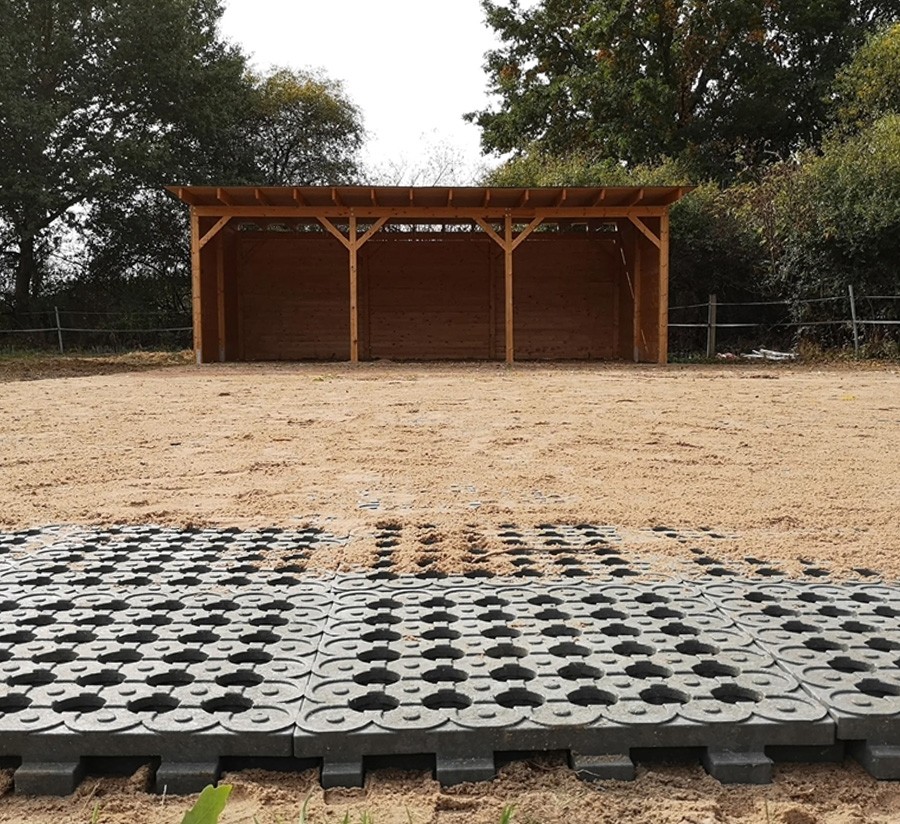

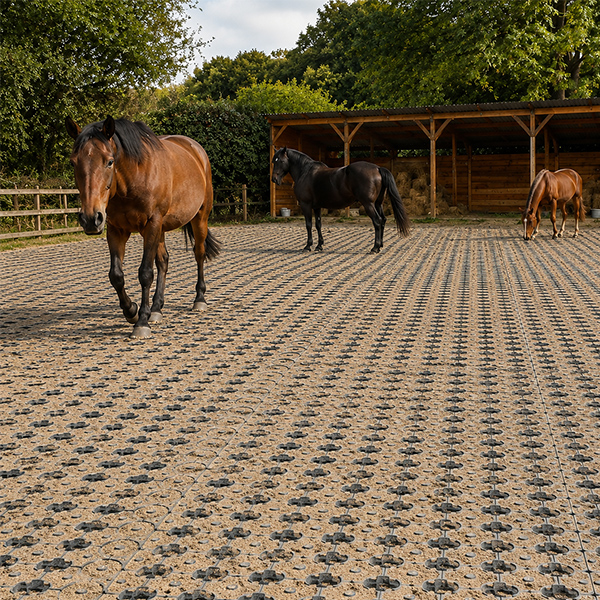

Horse Paddocks Creates a firm, well-drained surface for horse paddocks, helping reduce mud, rutting and poor ground conditions. |

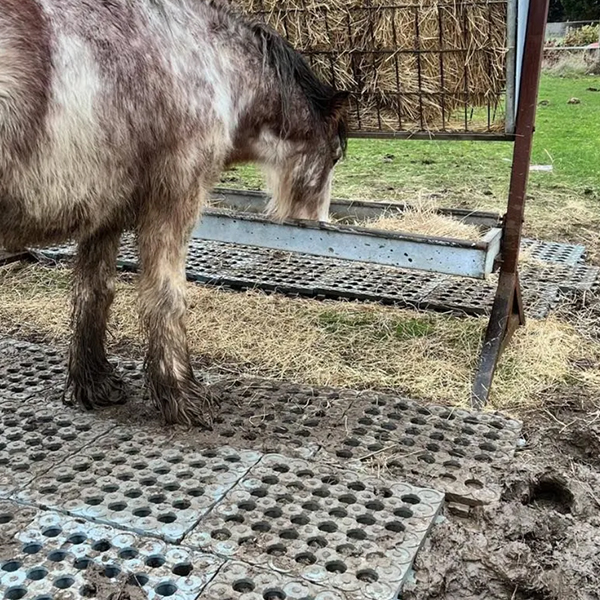

Feeding and Watering Areas Stabilizes wet ground around hay feeders, water troughs and other high-traffic animal feeding areas. |

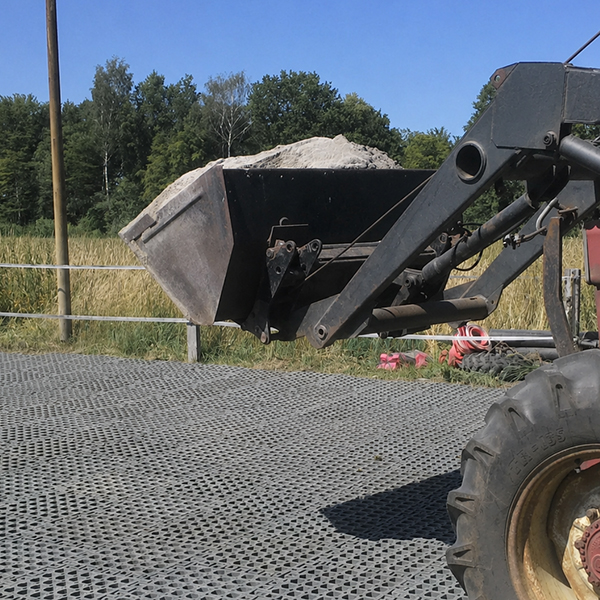

Farm Vehicle Access Reinforces farm access routes and working areas used by tractors, loaders and service vehicles when the sub-base and expected load are properly assessed. |
● SELECTION NOTE
Grid quantity and installation method should be confirmed according to the site area, soil condition, mud depth, drainage conditions, traffic type and expected load.
For horse and livestock areas, fill the grid openings with suitable permeable material and apply an appropriate sand topping before use.
For weak subgrades, sloped ground or vehicle traffic, confirm whether leveling, sub-base preparation, edge restraint or additional drainage is required.
The Horse Paddock Mud Control Grid is an interlocking ground reinforcement system for creating stable, well-drained surfaces in muddy, high-traffic areas.
