In construction and landscaping projects, manhole covers are expected to provide safe, durable, and reliable access to underground utilities.

However, in real applications, one issue is often reported by contractors and end users — noise during use. For contractors and project managers, a rattling manhole cover isn't just an annoyance; it can lead to client complaints, failed handovers, and costly site revisits.

This is especially noticeable in pedestrian areas, residential developments, commercial entrances, and public spaces where acoustic comfort is important. So where does this noise come from, and how can it be avoided?

Why Does a Manhole Cover Make Noise?

In most cases, the noise is not caused by the material itself, but by the interaction between components and installation conditions.

1.Metal-to-metal contact: When the cover directly touches the frame without any cushioning element, impact noise may occur under heavy load.

2.Micro movement under load: If the cover is not properly secured, slight movement between the cover and frame can create vibration and rattling sounds during pedestrian or light vehicle traffic.

3.Installation tolerances: Small gaps caused by manufacturing or installation deviations can amplify sound when repeated pressure is applied.

While these issues may seem minor, they can significantly affect the perceived quality of the finished project.

How Can Noise Be Prevented?

Noise control in manhole covers is not achieved by a single material improvement, but through system-level structural design. The key is to control contact, movement, and stability within the entire access system.

1.Sealing Structure for Vibration Reduction

Sealing elements are used between the cover and frame to act as a buffer layer. This helps reduce direct metal-to-metal contact and absorbs part of the vibration generated under load.

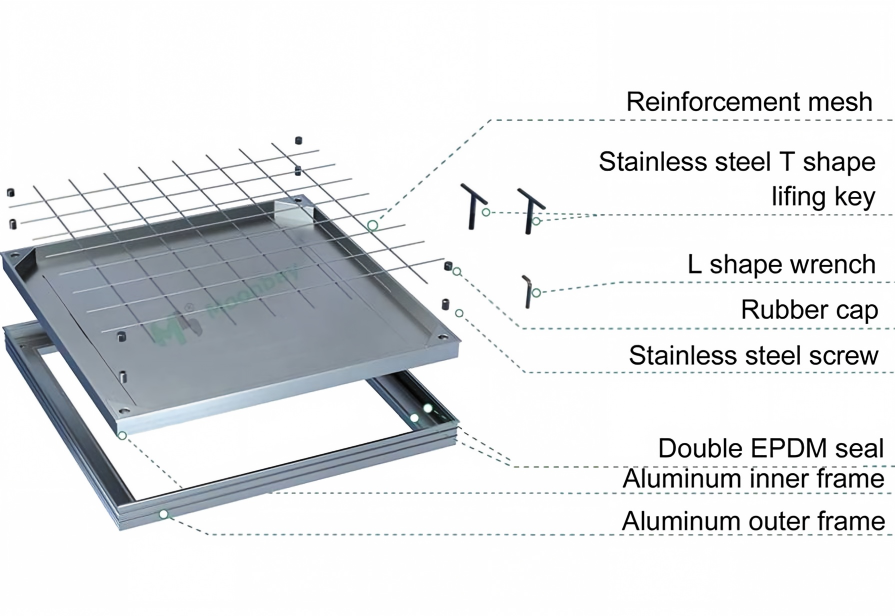

This structural diagram illustrates how the system components work together, including the double EPDM sealing strips, aluminum frame, and locking structure. These elements help prevent direct metal-to-metal contact and improve overall stability under load.

2.Mechanical Locking for Stability

A secure locking mechanism ensures the cover remains firmly fixed inside the frame after installation. This prevents unwanted movement, lifting, or rattling caused by repeated traffic loads or external force.

3.Recessed Infill Integration

Recessed designs allow the cover to be filled with surrounding paving materials such as stone or tiles. This improves surface integration and increases overall system stability through added self-weight.

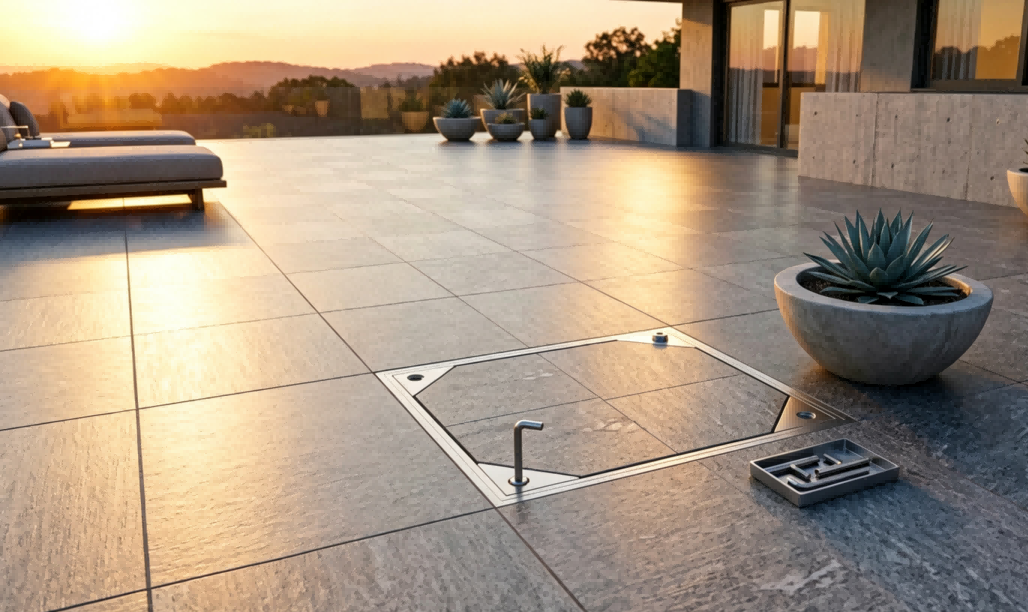

This image shows the real installation condition of a recessed manhole cover system, integrated seamlessly with surrounding paving materials while maintaining full access functionality.

In real engineering applications, these principles are achieved through different types of access cover systems, depending on project requirements such as load capacity, environment, and surface finish.

Moonbay access cover systems are designed around these engineering needs and include different solutions for different applications:

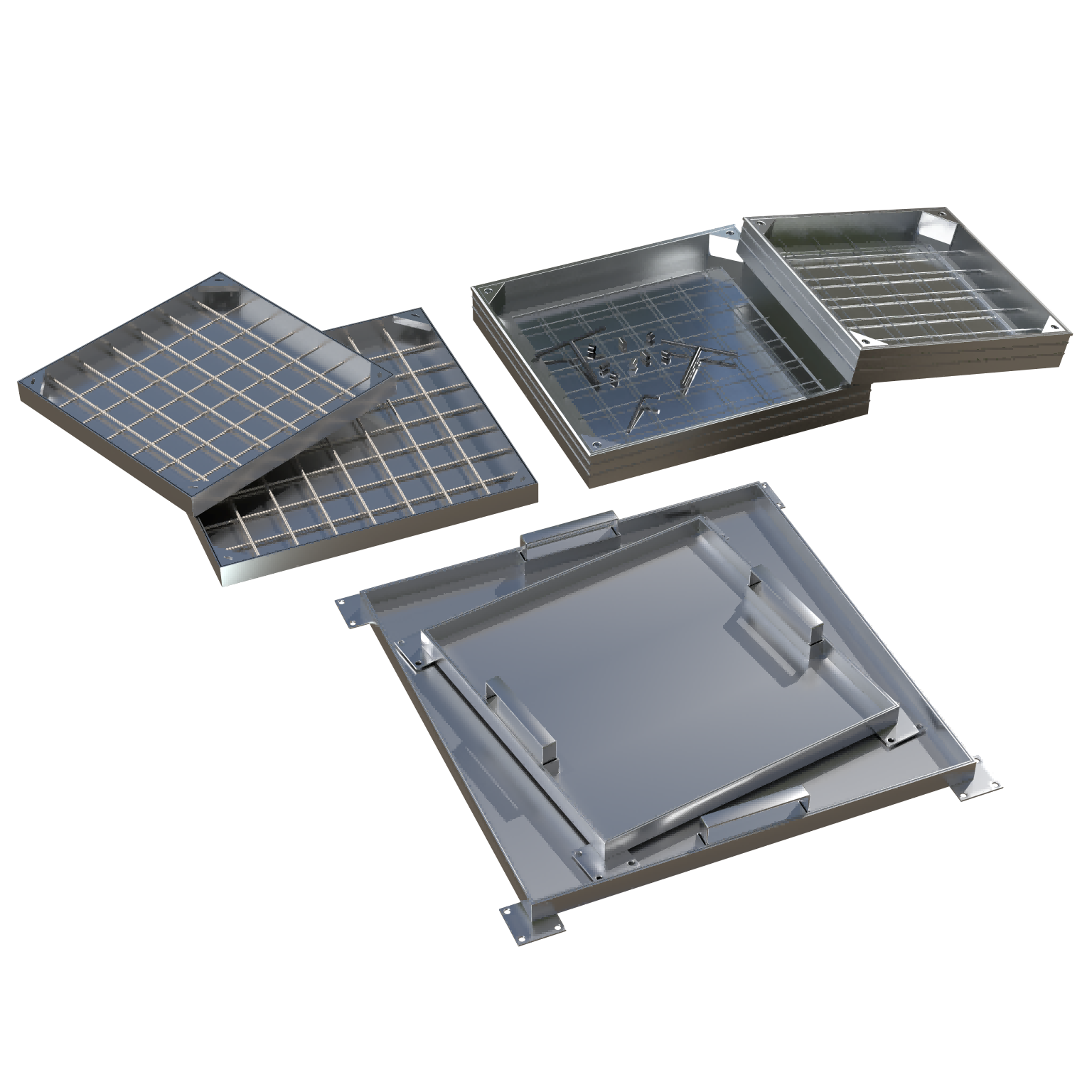

Aluminum recessed screw-lock covers: For pedestrian areas where noise reduction and surface integration are important.

Stainless steel invisible covers: For architectural projects requiring seamless finishes.

Ductile iron covers: For high-load municipal and traffic environments.

Polymer composite covers: For lightweight and corrosion-resistant installations.

Rather than a one-size-fits-all solution, different systems are selected to match different site conditions while maintaining the same core principles of stability, sealing, and safety.

Looking for a quiet, stable, and seamless access cover solution for your next project? Contact the Moonbay team today for a tailored quote or request our latest product catalog.
